How do I assemble my SmartDesk Connect?

Follow the steps below for an easy guide on how to assemble your SmartDesk Connect.





Table of Content


    Tools and Hardware

    • Torx T20 Screwdriver

    • Hex Key
    • 8x Torx Monitor Screws



    Monitor Screws

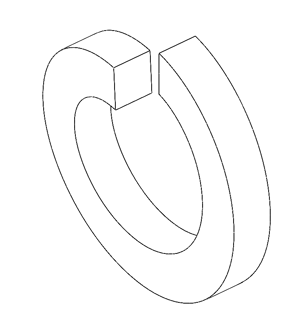

    • 8x Split Lock Washers

    media card



    8x Stainless Steel Washers

    Stainless Steel Washers

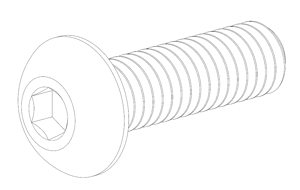

      • 6x Hex Spine Bolts
      • 6x Tooth Lock Washers

      Component

      • SmartDesk Connect (partially assembled)

    SmartDesk Connect

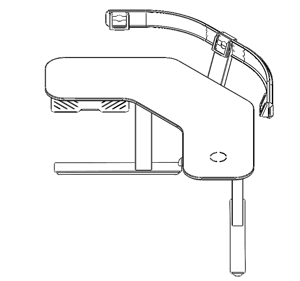

    • Monitor Spine

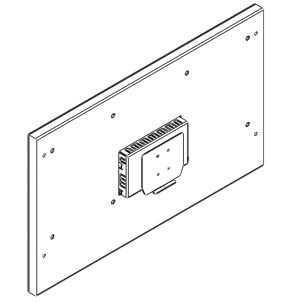

    • Left Monitor

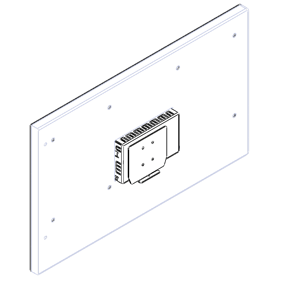

    • Center Monitor

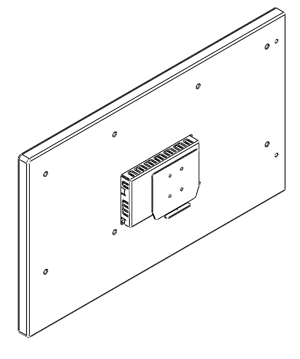

    • Right Monitor

    Right Monitor

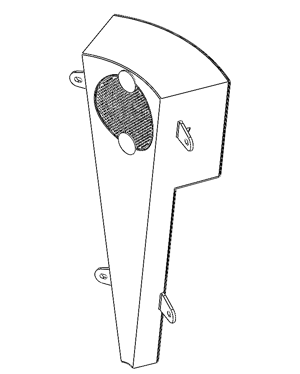

    • 2x Speaker Wedges

    Right Monitor

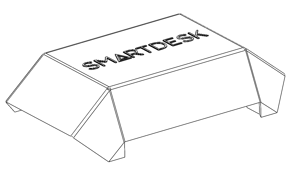

    • Spine Cap

    Spine Cap

    • Power Cord

    • 4x Casters (optional)


    Assembly Instructions

    Prepare Hardware icons8-youtube-play-button-48

    1. To use your hardware correctly, insert the Torx screw into the split lock washer.

    2. Slide the screw and split lock washer into the stainless steel washer.

    3. Repeat the process for the remaining screws.
    4. Once all screws are prepared, set them aside until required.


    1. Now prepare your hex bolts by sliding them into the tooth lock washers.

    2. Once all bolts are prepared, set them aside until required.

    Casters icons8-youtube-play-button-48

    1. Using two or more adults, lift one side of the SmartDesk off the ground. We recommend lifting from the support frame under the tabletop.

    2. Screw the two casters into the leg assembly to the maximum depth.

    3. Repeat the process for the opposing leg assembly.

    Some adjustments may be necessary after the SmartDesk is in the desired position to level the desk properly.

    Monitor Spine

    1. Lift the monitor spine from the center and slide it onto the rear mounting bracket.

    2. Screw in the two prepared hex bolts to both sides of the monitor spine.

    3. While pulling back on the spine, screw in two additional hex bolts on the underside of the spine. This step is critical to ensure the spine does not sag.



    Center Monitor icons8-youtube-play-button-48

    1. Slide the center monitor into the center mounting bracket.

    Center Monitor



    Speaker Wedges icons8-youtube-play-button-48

    1. Plug the black/red cable to the rear of the speaker wedge, then rest the speaker wedge on the monitor arm.



    Speaker Wedges



    2. Align the top of the speaker wedge to the top of the monitor, then fasten the speaker wedge to the monitor using two prepared Torx screws through the tabs shown.

    Speaker Wedges

    3. Repeat the process for the opposing speaker wedge.


    Side Monitors icons8-youtube-play-button-48

    1. Slide the right monitor into the right mounting bracket.



    mounting bracket



    2. Align the top of the right speaker wedge to the top of the right monitor, then fasten the speaker wedge to the monitor using two prepared Torx screws through the tabs shown.



    mounting bracket



    3. Slide the left monitor into the left mounting bracket. Align the top of the left speaker wedge to the top of the left monitor, then fasten the speaker wedge to the monitor using two prepared Torx screws through the tabs shown.

    left mounting bracket



    Connect and Get to Work icons8-youtube-play-button-48

    1. Connect the DisplayPort and power cables for each monitor.



    left mounting bracket

     2. Connect the Molex cable to the underside of the tabletop.

    3. Connect the three Displayport cables to the rear of the dock.

    4.Attach spine cap to the monitor spine.



    left mounting bracket

    5. Connect the power cord and verify that the SmartDesk is operating.
    left mounting bracket
    All monitors should display a message, and the Qi wireless charger should glow blue.
    left mounting bracket

    Support

    If you aren't satisfied, need assistance, or run into any problems, Contact the SmartDesk team at support@cemtrex.com or 1-888-260-4252 (9 AM-5 PM EST).

    support
